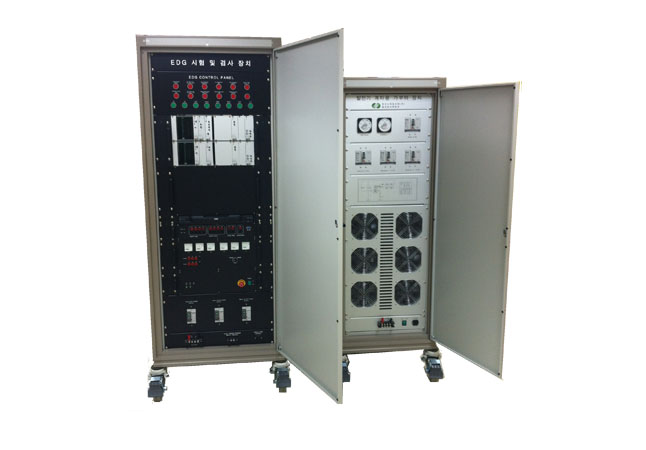

Test Simulator for EDG Excitation System (ETS-5000)
A device to inspect the integrity of individual cards for emergency-use diesel generator (EDG) excitation systems: functional testing on excitation systems with no need to operate a diesel engine
business
- Home
- Business Areas
- Power Plant Diagnosis Testing Equipment
Power Plant Diagnosis Testing Equipment
Product Information
- Product Features
- · Testing each individual card of an excitation controller
· Testing the linkage with the excitation system (regardless of any diesel engine operation), power supply to the controller,
and operation and stoppage of the EDG
· Testing the operation range, mode transfer, step response, and under excitation limiter performance
· Comprehensive test performance
· Test history data saving of each card
- Applications
- · Hanbit power plant Units 2 and 3; Hanul power plant Unit 2
본문
▶ Operational Data Waveform and Configuration
